A standard bathtub in the United States is 60 inches long and 30 to 32 inches wide, but that exterior measurement shrinks once tile, wallboard, and the mounting flange take their cut. The interior basin you actually sit in can feel noticeably tighter, especially if the floor is raised to hide plumbing. An alcove tub, the rectangular three-wall fixture found in most American bathrooms, typically holds only 150 to 180 liters despite its generous-looking footprint.
How Wide a Standard Bathtub Runs

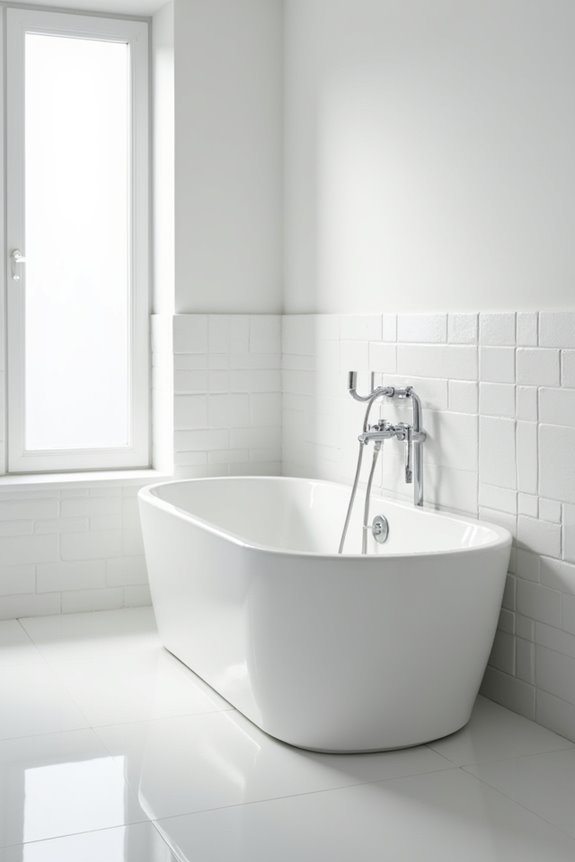

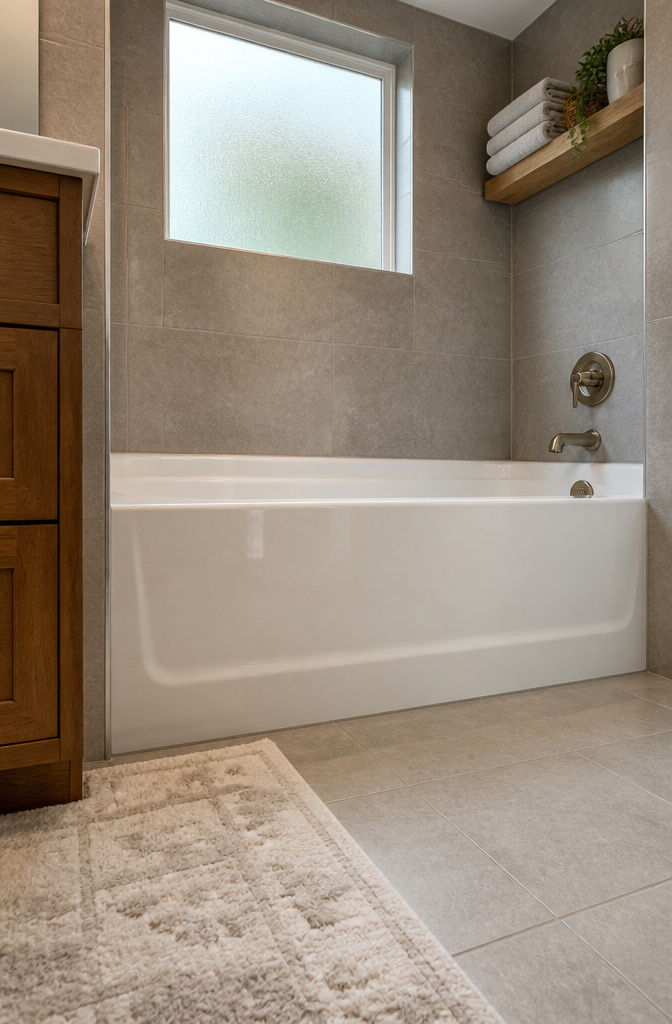

A standard bathtub in the United States is 60 inches long and 30 to 32 inches wide, with a height that usually falls between 14 and 20 inches. That footprint belongs to the alcove tub, the rectangular, three-wall installation you’ll find in most American bathrooms, especially tub-shower combinations.
Those exterior numbers tell only part of the story. The finished opening you actually see can shrink once wallboard, tile, and the tub’s own mounting flange are in place. Inside the basin, the soaking depth, floor length, and backrest slope all vary from model to model, even when the outside dimensions match.
Water capacity runs about 150 to 180 liters for this size, which helps explain why the dimensions matter in practice. A tub that looks generous on the spec sheet can feel cramped once you’re in it, particularly if the interior floor is raised to accommodate plumbing. For replacement projects, the rough-in dimensions, drain position, and flange requirements deserve a closer look than the label "standard" might suggest.
Standard Bathtub Height and Depth

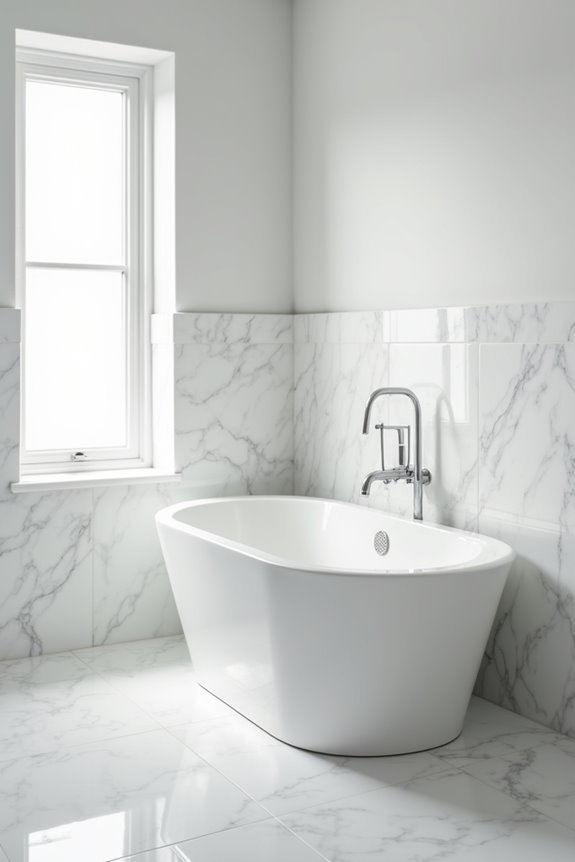

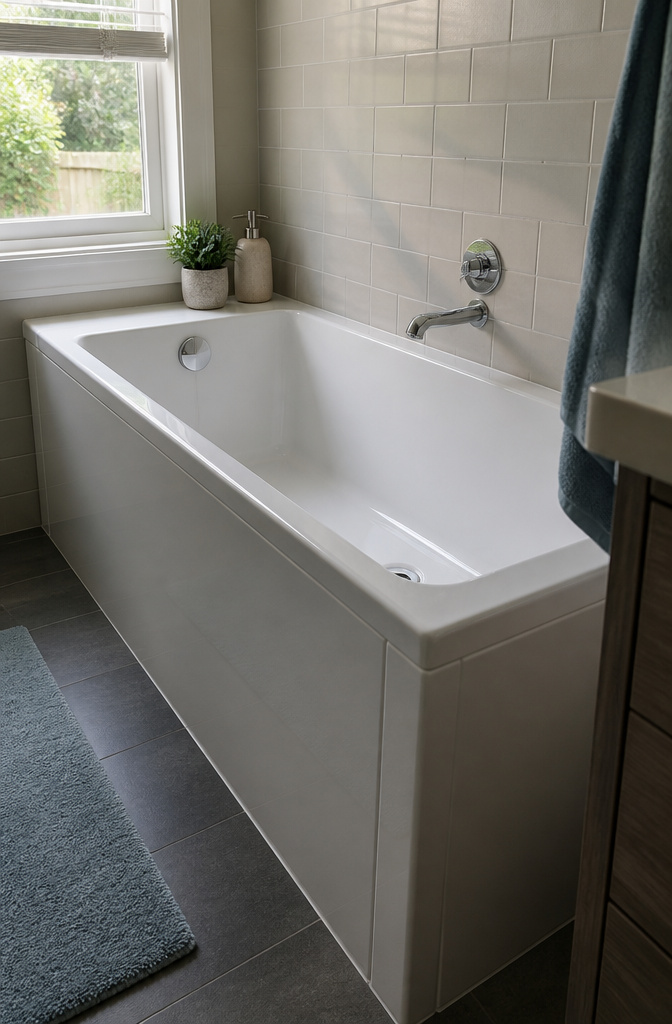

Standard bathtub height runs from 14 to 20 inches, but that figure is the outside shell, not the water you actually get. The soaking depth, the part that matters, is measured from the lowest point of the interior basin to the center or lower edge of the overflow drain. That overflow sits below the rim, so a tub can stand 20 inches tall and still hold water only 14 or 16 inches deep.
Some tubs use that height efficiently. Others build it into a raised floor or thick base structure, which steals inches you thought you were buying. A 14-inch tub with a low basin and well-placed overflow can feel deeper in use than a 20-inch model with a high floor and early overflow.
Depth is measured from the bottom of the tub’s interior to the overflow drain, not the rim. A deeper tub allows you to soak more of your body, but it will take longer to fill and use more hot water.
For the reader, this means checking two numbers on the spec sheet: overall height and water depth to overflow. The gap between them is where your comfort actually lives.
Alcove Tub Dimensions

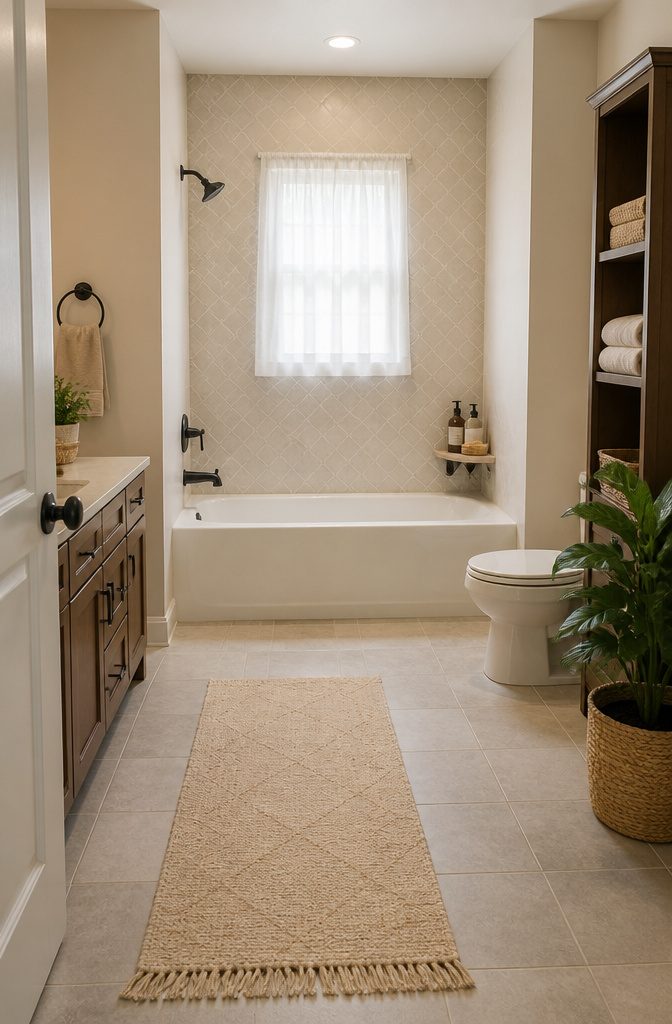

The most common bathtub in American homes is the alcove tub, and its dimensions are 60 inches long by 30 to 32 inches wide. I see this size everywhere because it was built around the way houses are framed: wall studs sit 16 or 24 inches apart, and a 60-inch span fits neatly across three of those bays with room for the plumbing at one end. That predictability made it the default for builders, which is why so many family bathrooms and tub-shower combos rely on it.
These tubs are almost always fiberglass or acrylic, materials chosen because they are light enough to muscle through a narrow bathroom door and cheap enough to keep a renovation on budget. The finished basin is typically 14 to 20 inches deep, though the rough opening in your wall will run slightly larger once you account for tile, backer board, and the tub’s mounting flange. If you are replacing an existing alcove tub, do not assume every 60-inch model will slide right in. Drain location, apron height, and flange style vary, and a half-inch mismatch at the rough opening can mean a very long Saturday.
Freestanding Tub Dimensions

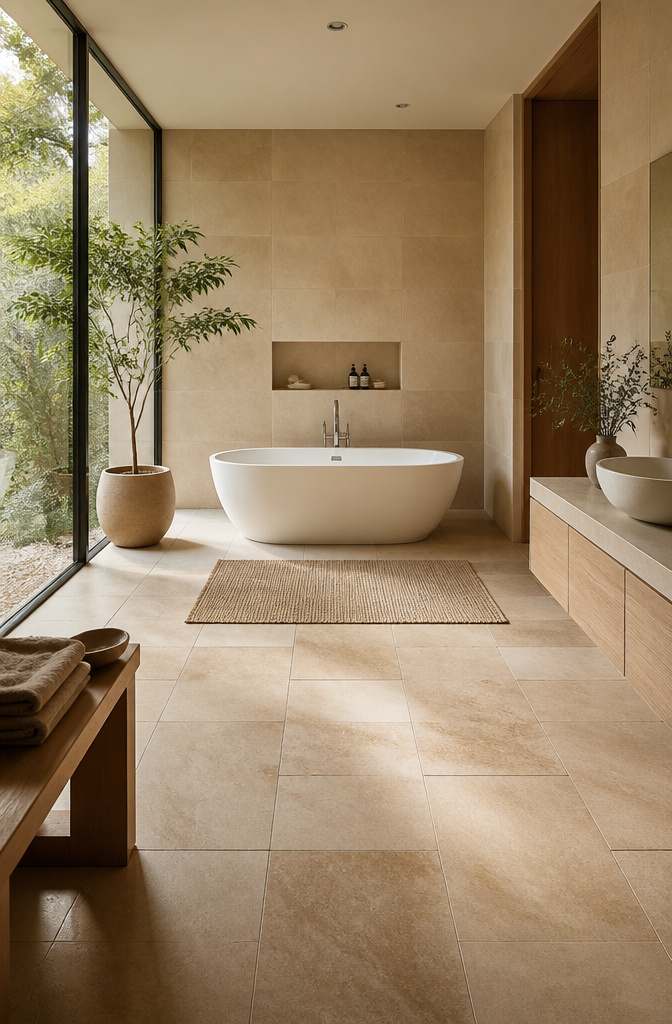

Freestanding tubs run 27 to 32 inches wide and 55 to 72 inches long, with depths from 15 to 20 inches on standard models and soaking versions pushing past 24 inches. That width range sits slightly narrower than a typical alcove tub, but the tub reads differently in a room because it stands alone.
I learned this the hard way measuring for a friend’s bathroom refresh: a 30-inch freestanding tub sounds manageable on paper, but it needs breathing room on all sides. Accepted practice adds 3 inches beyond each end and 4 inches along the walls, which means the footprint grows to roughly 6 inches longer and 4 inches wider than the tub itself. Without that clearance, the sculptural quality that makes freestanding tubs appealing turns into a cramped obstacle.
The visual weight shifts too. An alcove tub of the same width disappears into its surround; your eye reads the wall, not the fixture. A freestanding tub carries the full outline, so width feels more present even when the number is identical. Styles vary widely, from clawfoot reproductions to pedestal and slipper designs with raised backs, but the spatial demand stays constant. Floor-mounted plumbing and potential joist reinforcement for heavier earthenware models, which can hit around 1,000 pounds before water, add constraints that alcove installations simply don’t face.
Corner and Walk-In Tub Sizes

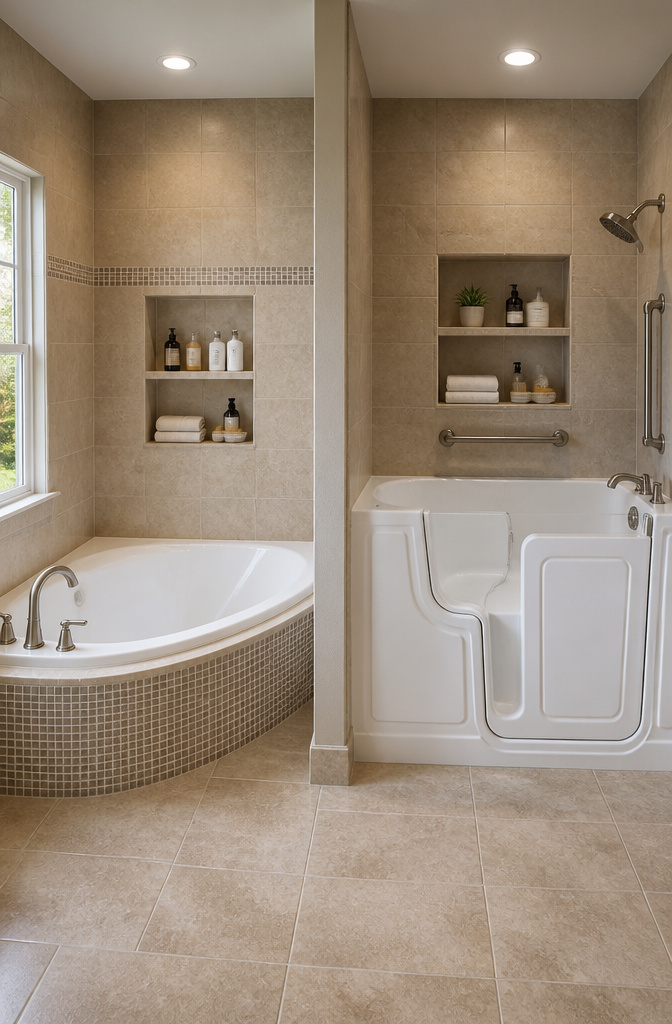

Corner tubs and walk-in tubs solve very different problems, and their dimensions reflect that. A standard corner tub measures 60 inches on each side, forming a triangle that tucks into a corner. That footprint frees up wall space, but the diagonal span eats more floor area than an alcove tub of the same nominal size. Plumbing access and deck support need planning before the install, not after.

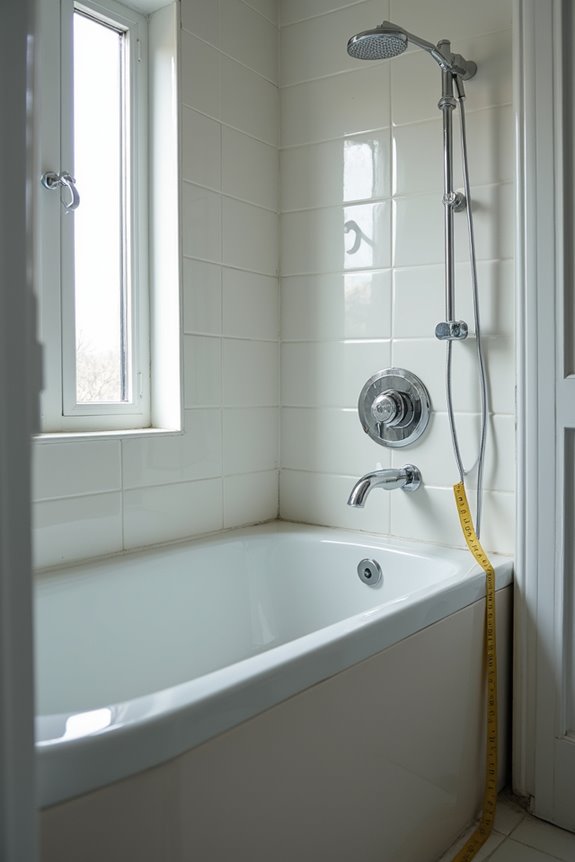

Walk-in tubs run 48 to 60 inches long and 28 to 32 inches wide, with a door seal and built-in seat for accessibility. The seated bathing position and low step-in height trade soaking depth for safety, and the 38-inch total height usually requires checking doorway clearances on the way in. Most models drop into a standard tub opening, though added features like whirlpool jets can mean minor plumbing updates.
Between the two, corner tubs ask for layout creativity, walk-in tubs for entry and egress space. Neither fits the same slot as a basic alcove install.
Drop-In and Platform Tub Sizing

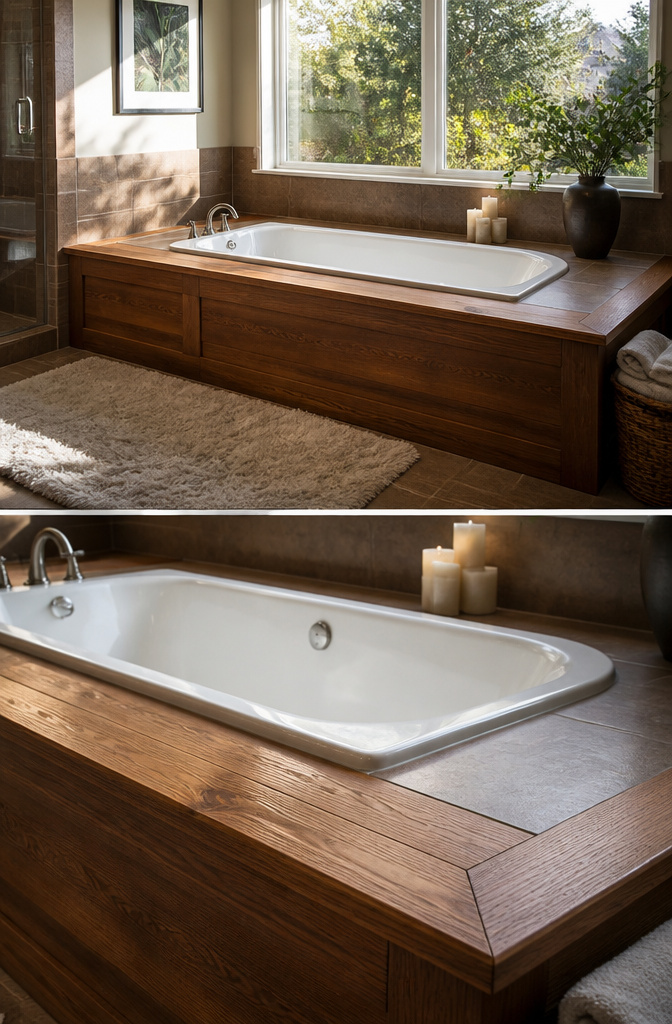

Drop-in tubs slide into a framed deck or platform, so the number that actually matters is the rough opening, not the rim you see from above. Most drop-in basins run about 60 inches long by 30–32 inches wide, nearly identical to a standard alcove tub. The difference is everything around it.
That deck needs at least six inches of flat surface on every side, and the framing underneath has to extend a full foot beyond the tub in both directions. Your finished footprint can easily hit six by five feet or more once tile, waterproofing, and any bench or storage you build in are accounted for. I have seen bathrooms where the tub itself was modest but the platform ate half the floor.
If you are measuring for one, measure the cavity, not the basin. The rim dimensions will mislead you every time.
Space to Leave Around a Tub

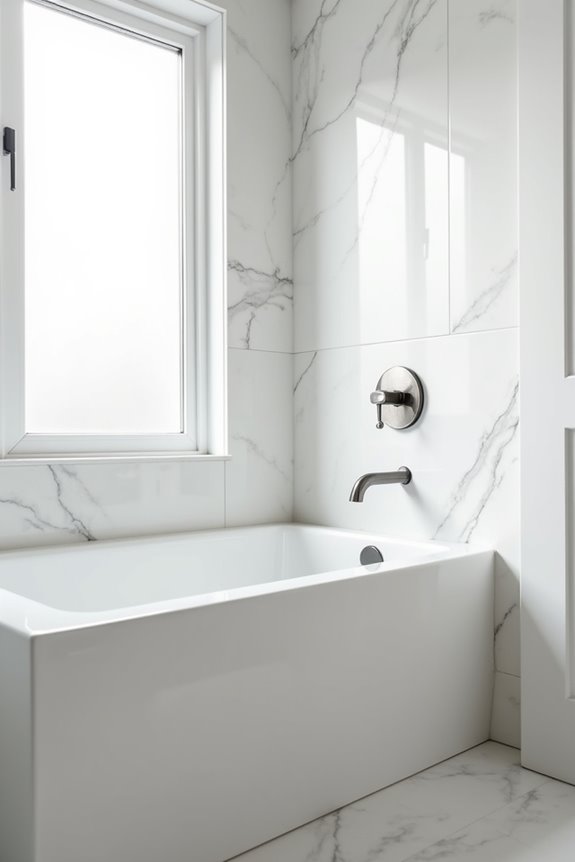

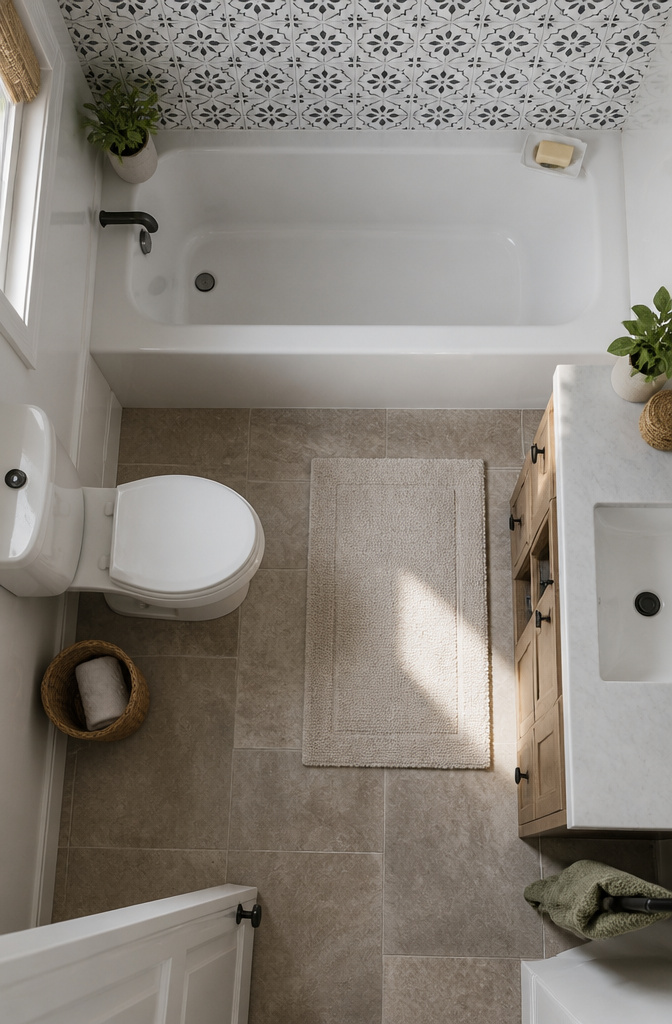

A 32-inch tub sounds like it should fit a 32-inch gap, but that is not how installation works. You need at least 24 inches of clear floor space in front for safe entry and exit, and that is just the start. Side clearances matter too; 12 inches from the tub edge to a nearby toilet or vanity is the common minimum, though more is better if the room allows it. The tub’s listed width also does not account for backer board, tile, or leveling adjustments, so the framed opening often ends up several inches larger in practice. I have seen people measure the alcove, buy the tub, and then realize the plumbing access panel needs another few inches on one end. Plan the real footprint, not the catalog number.
How Tub Material Affects Weight and Install

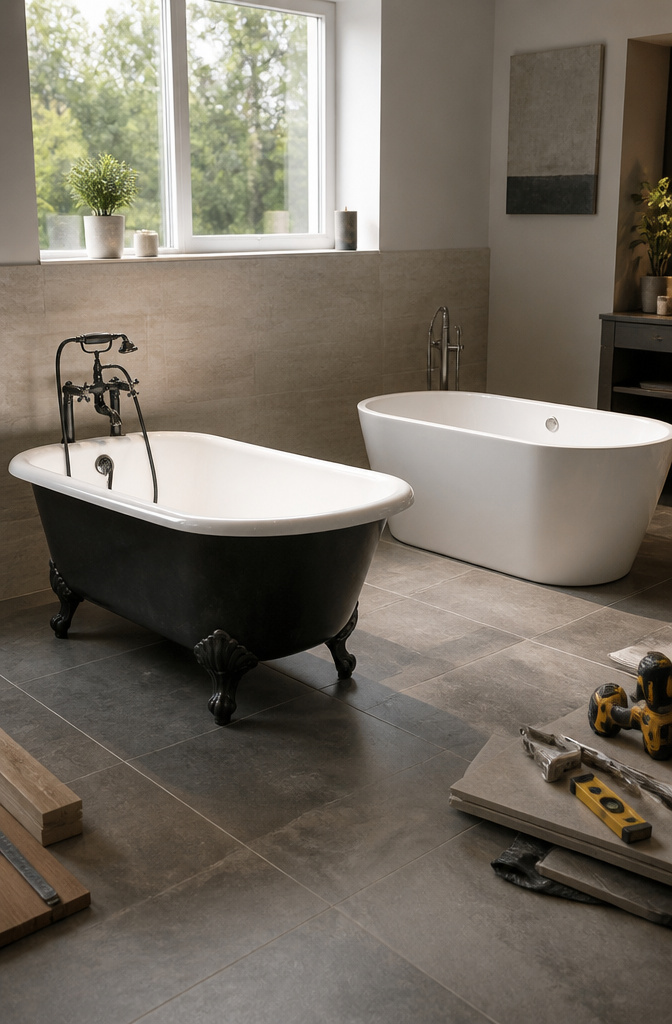

A 60-by-32-inch cast iron tub can top 300 pounds empty, while an acrylic tub the same size weighs around 70. That gap shapes everything that happens after you click "buy."
I learned this the hard way with a bathroom refresh a few years back. The tub arrived on a pallet, and two of us could barely slide it off the truck, let alone carry it up a narrow staircase. Cast iron holds heat beautifully and lasts forever, but it demands a plan for delivery day and enough hands to maneuver something heavier than a washing machine.
Fiberglass and acrylic are a different story. One person can usually wrestle them into place, which matters enormously in a weekend project with no crew on call. The lighter weight also means less stress on your floor joists, though I will not pretend I have never heard a floor creak and wondered.
Cast iron walls run thicker too, often two inches or more, so that same 60-inch footprint feels tighter inside than an acrylic equivalent. Stone resin sits somewhere in between, sharp edges and thin walls maximizing soaking space without the full heft of metal.
For renters and first-home owners doing their own install, the material choice is really a question of who is carrying what up the stairs.
Tub Styles Compared

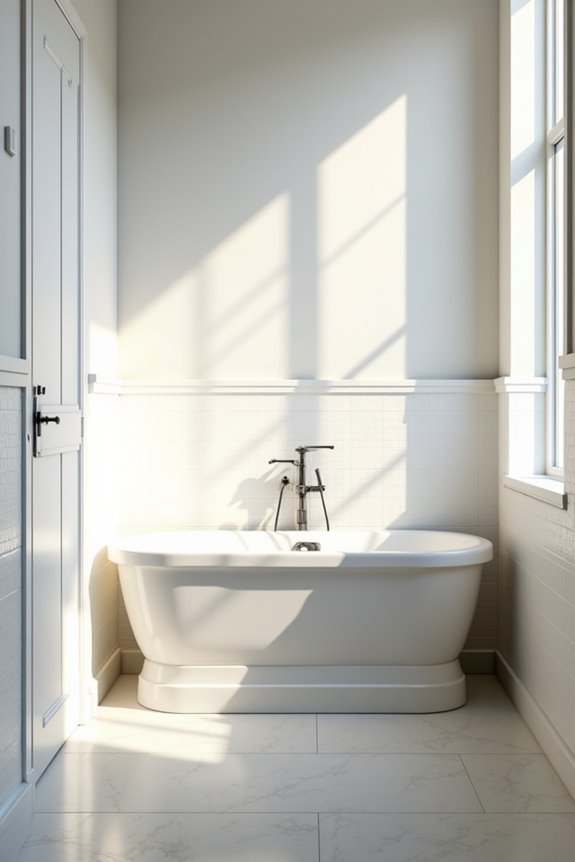

The 60-by-30-to-32-inch alcove tub is the baseline most of us picture, but five common styles spread across very different footprints. A freestanding tub can run as slim as 27 inches wide or stretch to 72 inches long, while a corner unit demands a full 60-by-60-inch square. Walk-in tubs stand 38 to 40 inches tall for safe entry; drop-in models vary the widest, from 30 to 42 inches across.

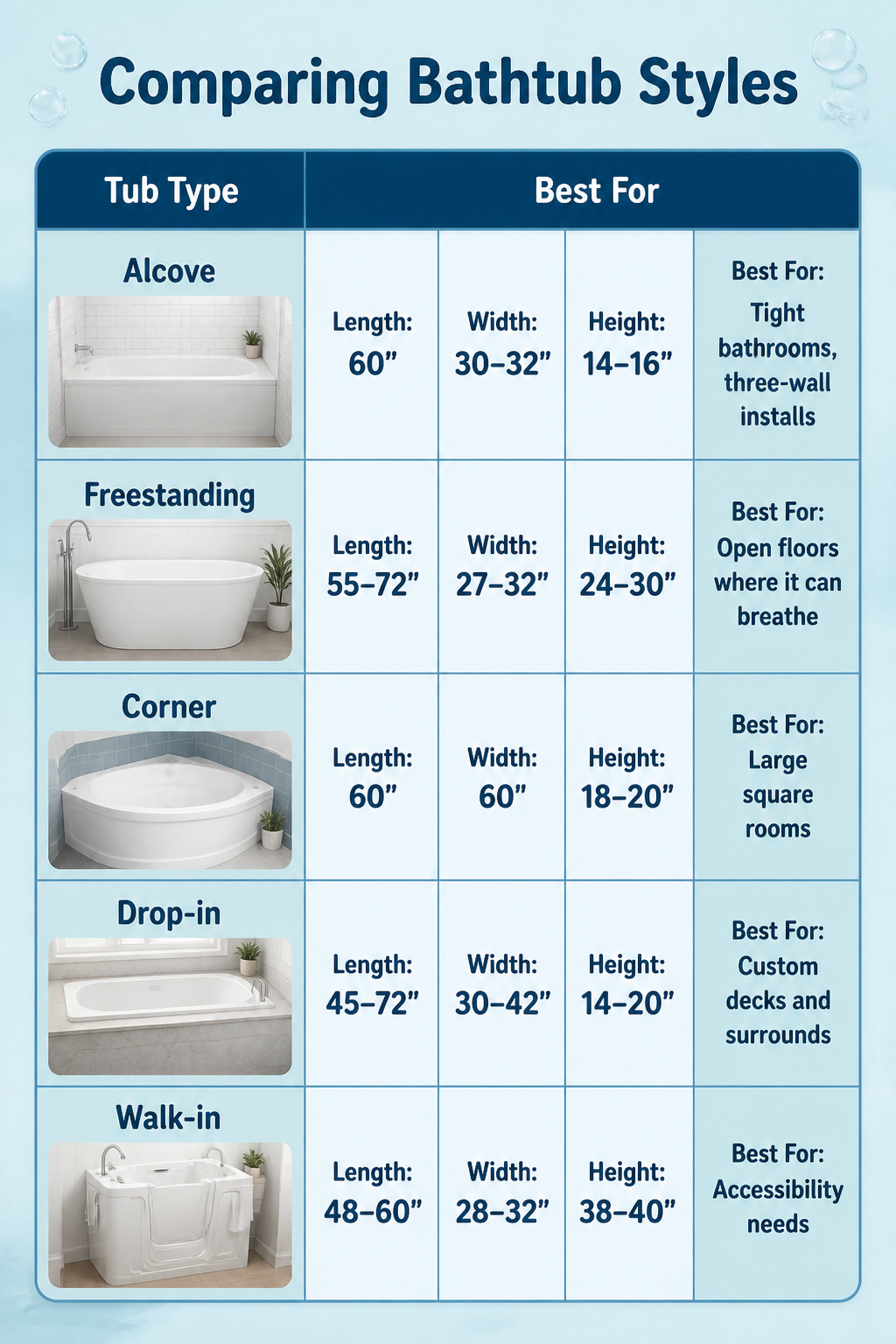

| Tub Type | Length | Width | Height | Best For |
|---|---|---|---|---|
| Alcove | 60" | 30–32" | 14–16" | Tight bathrooms, three-wall installs |
| Freestanding | 55–72" | 27–32" | 24–30" | Open floors where it can breathe |
| Corner | 60" | 60" | 18–20" | Large square rooms |
| Drop-in | 45–72" | 30–42" | 14–20" | Custom decks and surrounds |
| Walk-in | 48–60" | 28–32" | 38–40" | Accessibility needs |
If your bathroom is a standard 5-by-8 feet, the alcove is your practical friend. Freestanding and corner tubs need more floor space than their footprint alone suggests; leave clearance on all sides or the room turns into an obstacle course.
Frequently Asked Questions
What is a standard bathtub size?
A standard bathtub in the United States is 60 inches long and 30 to 32 inches wide, with a height between 14 and 20 inches. This is the alcove tub, the rectangular three-wall installation found in most American bathrooms. Those exterior measurements shrink slightly once wallboard, tile, and the mounting flange are in place.
How much space do I need around a bathtub?
You need at least 24 inches of clear floor space in front of the tub for safe entry and exit. Side clearances should hit 12 inches minimum from the tub edge to any nearby toilet or vanity. For freestanding tubs, add 3 inches beyond each end and 4 inches along walls so the fixture does not become an obstacle.
What are the dimensions of a walk-in bathtub?
Walk-in bathtubs run 48 to 60 inches long and 28 to 32 inches wide, with a total height of 38 to 40 inches. The door seal and built-in seat trade soaking depth for safe accessibility, and that height usually means checking doorway clearances before delivery.
