How to Install Garden Lights With a Transformer in 5 Steps

I start by mapping buried utilities with a cable detector and sketching where my lights will go. Then I mount the transformer in a dry spot with a foot of clearance all around, keeping it away from water. Next I dig six-inch trenches and pick the right wire gauge so my lights don’t dim. I splice fixtures with snug, weatherproof connectors, leave slack for tweaks, and test everything before I bury. Finally I cover the wire, aim each light just right, and chase down any flickering. The following breakdown covers each step so you can complete this installation correctly on your first try.

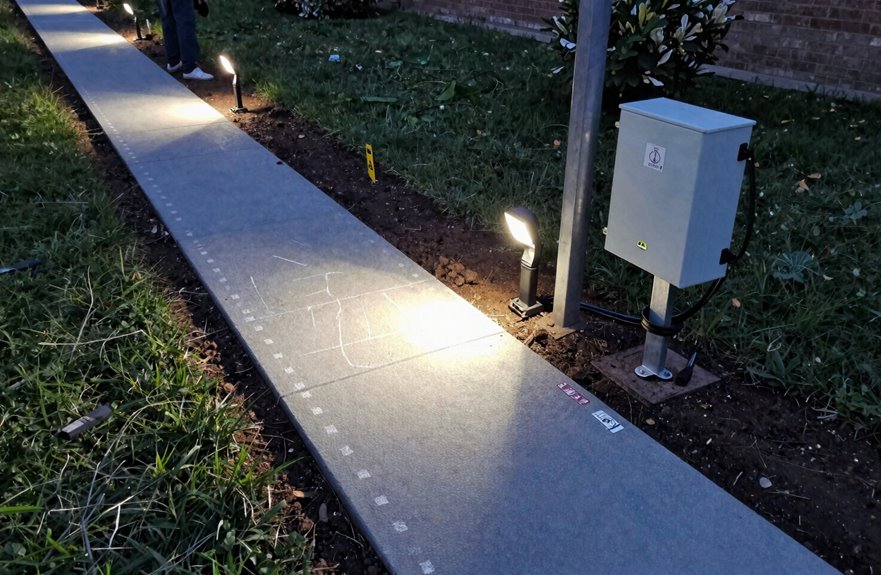

Mark Buried Utilities and Map Your Light Placement

Where do I start with a project like this? I grab my project map. I check for buried utilities before touching a single blade of grass.

I never begin without my project map—knowing what’s underground keeps me safe before the first blade of grass moves.

Utility marking isn’t optional; it’s essential. I use my cable detector to sweep the yard and mark irrigation lines and old wires. Safety during installation starts right here, with no exceptions.

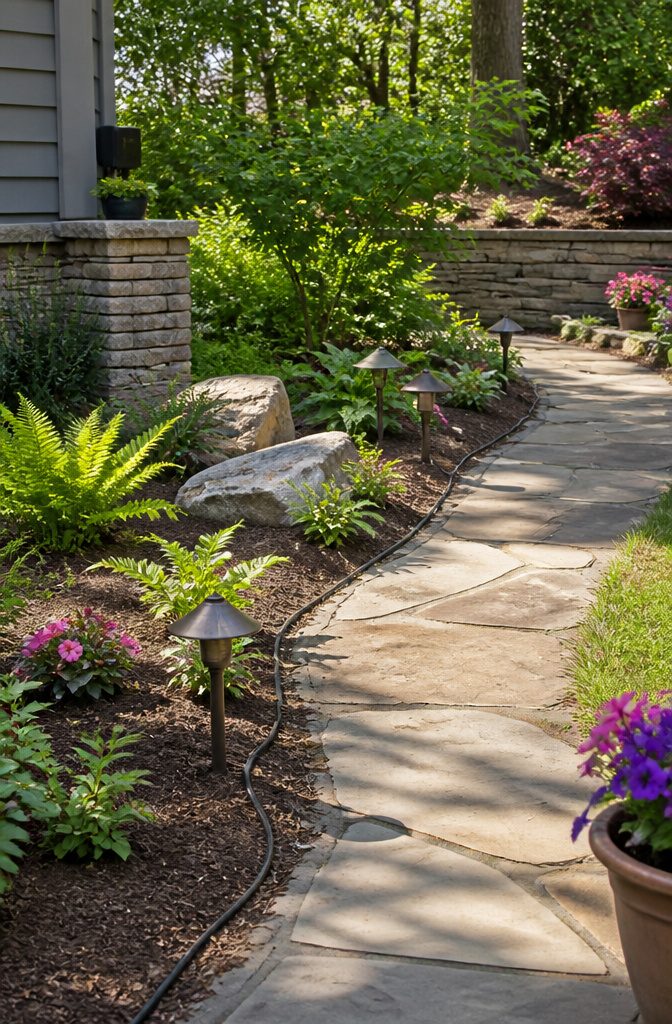

Mapping light placement comes next. I follow my project map like treasure directions, sketching where each fixture goes. Then I trench shallow grooves for wires, staying clear of those marks. My low voltage transformer waits its turn, but the path matters now.

I’m not rushing this. Good landscape lighting begins with knowing what’s already hiding underground. Knowing exactly where you’re stepping before you step there makes the installation process more efficient and prevents costly mistakes.

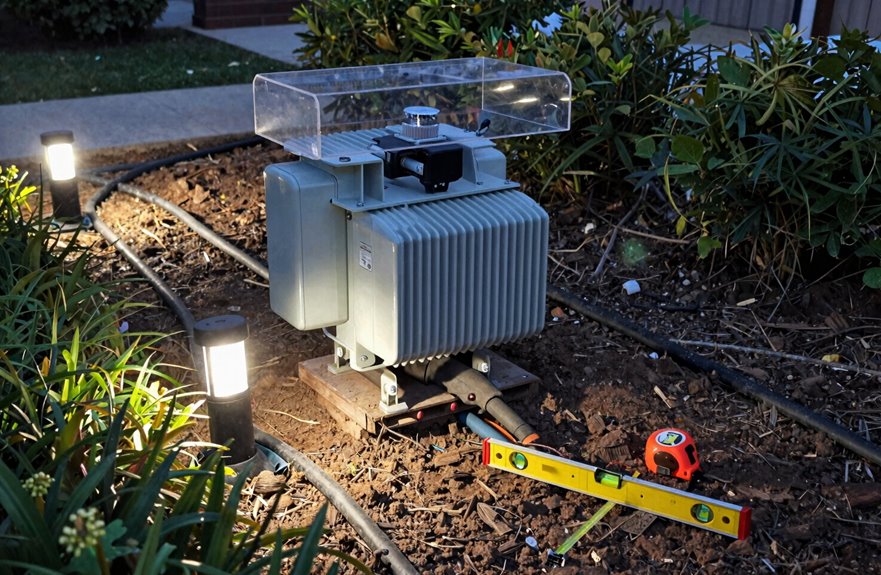

Mount Your Low Voltage Transformer With Clearance

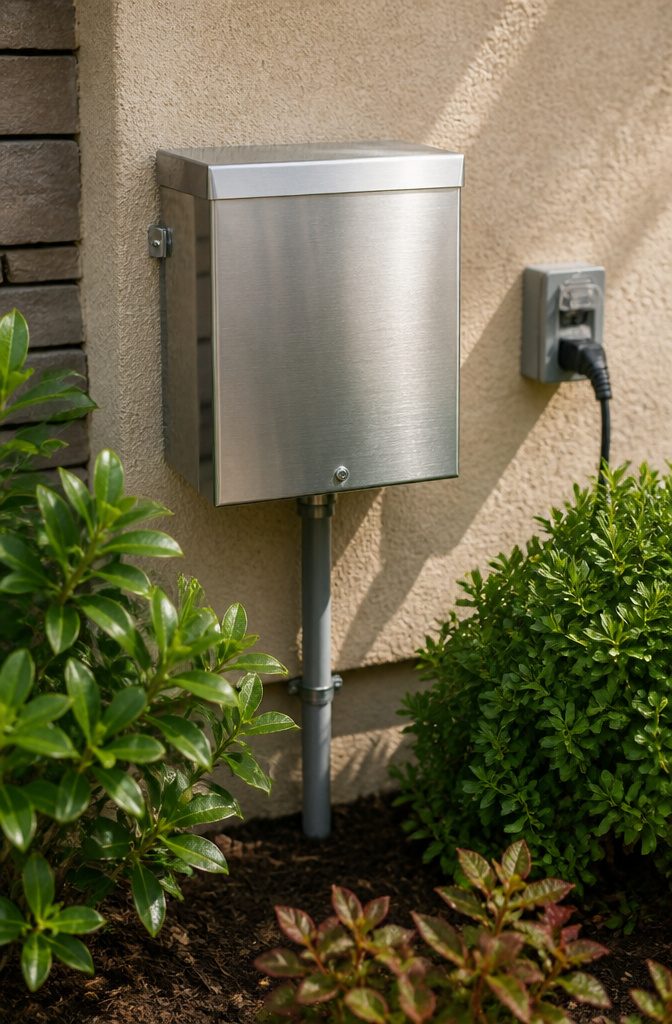

Once I’ve got my layout mapped and my trenches ready, I grab my transformer and scout the perfect spot. I need transformer clearance of at least a foot on every side so my low-voltage transformer has proper air circulation. Ventilation is essential. I pick a mounting location that’s dry, well-ventilated, and away from rain or puddles. Moisture protection is critical, so I stay 30 feet from water features. For heat tolerance, I mount on a surface that won’t scorch, and I keep ground clearance at 12 inches minimum. Electrical safety drives every choice here. For outdoor installation, I position the transformer near power but think ahead for accessibility to timers and adjustment points, which prevents problems later. Proper mounting placement ensures reliable system performance.

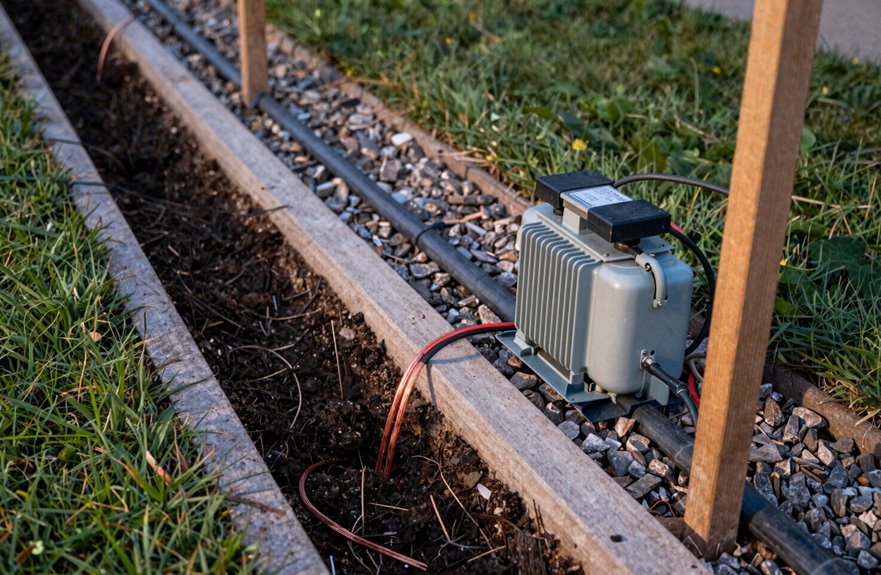

Dig Trenches and Select Wire Gauge for Your Runs

The trenches are where everything starts coming together, so I grab my trenching shovel and get ready to dig. I’m trenching narrow paths, just enough for the wire, keeping soil disturbance minimal. Utility avoidance comes first. I mark lines, call providers, and wait for the all-clear. No shortcuts here.

For burial depth, I’m going at least 6 inches down, leaving 5 feet unburied at each end for tweaks later. My main wire run needs proper moisture protection, so I’m using conduit or no-ox wire where dampness hits.

Wire gauge matters significantly. I match it to run length and my transformer’s output, checking that 12V or 15V tap compatibility. Too thin wire causes power loss. Selecting the correct gauge ensures your low-voltage system operates at full capacity.

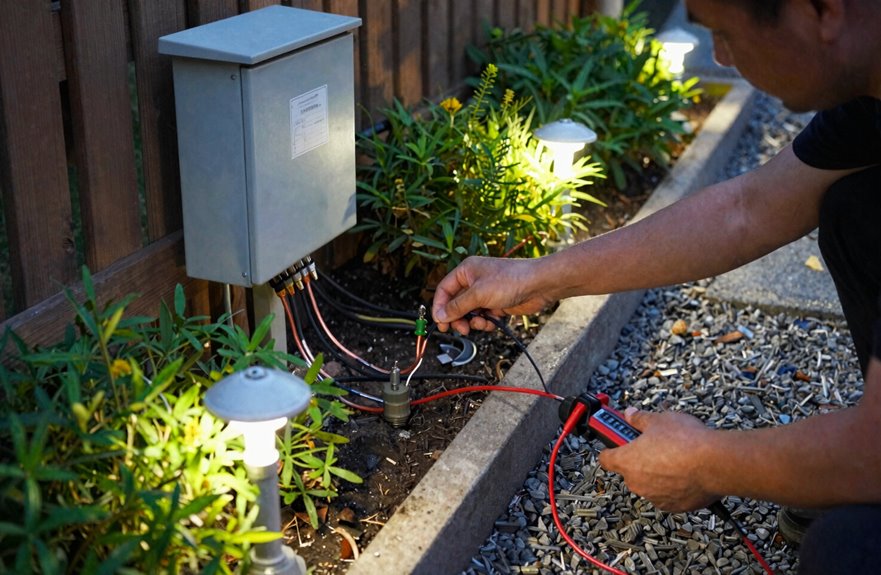

Splice Fixtures, Choose Voltage Tap, and Test Connections

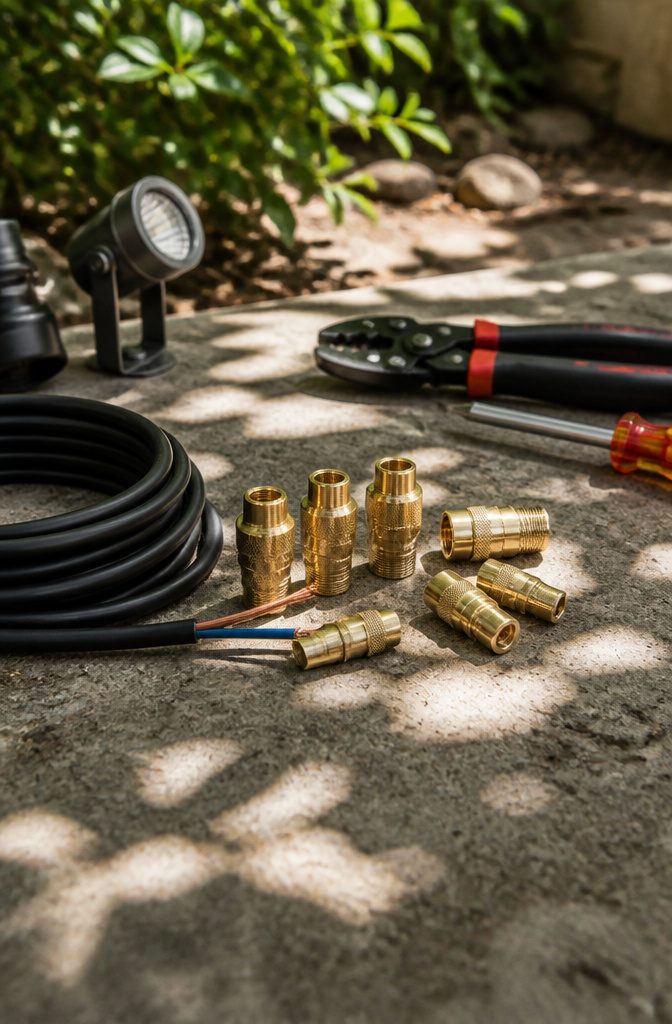

Now that I’ve got my trenches dug and wire laid out, I’m ready to start making things light up. I’ll splice my fixtures to the main low voltage wiring using twist-on connectors or clamp-connected junctions, keeping everything dry and snug. I’m leaving five feet loose at each end for testing and adjustments.

Here’s how this comes together:

1. I strip the ends, twist them tight, and seal those connections to prevent corrosion in outdoor lighting.
2. I route everything through hubs, neat little junctions that gather multiple fixtures into one tidy spot.
3. I check my run length and flip that voltage tap to 12V or 15V on the transformer so nothing fades halfway down the line.

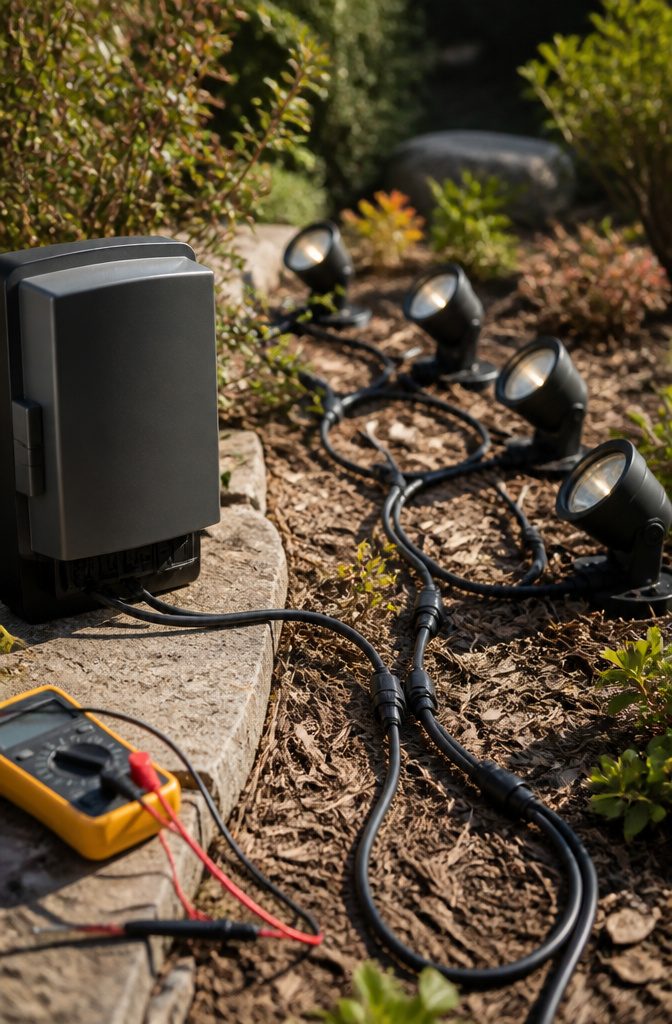

4. I fire it up, walk the yard, and test every bulb before burial. This prevents installing fixtures that don’t function properly.

My testing grid is now lit, my fixtures shine, and my transformer setup is confirmed to work correctly.

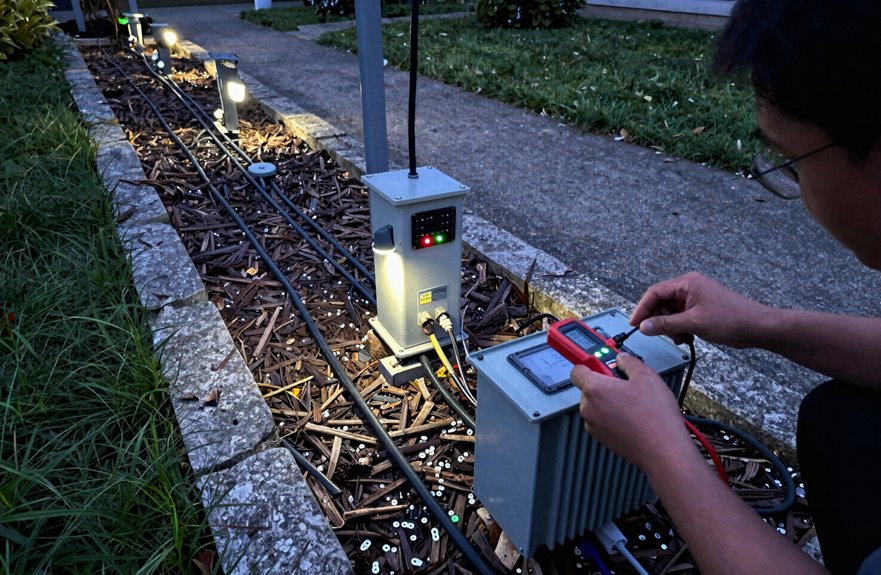

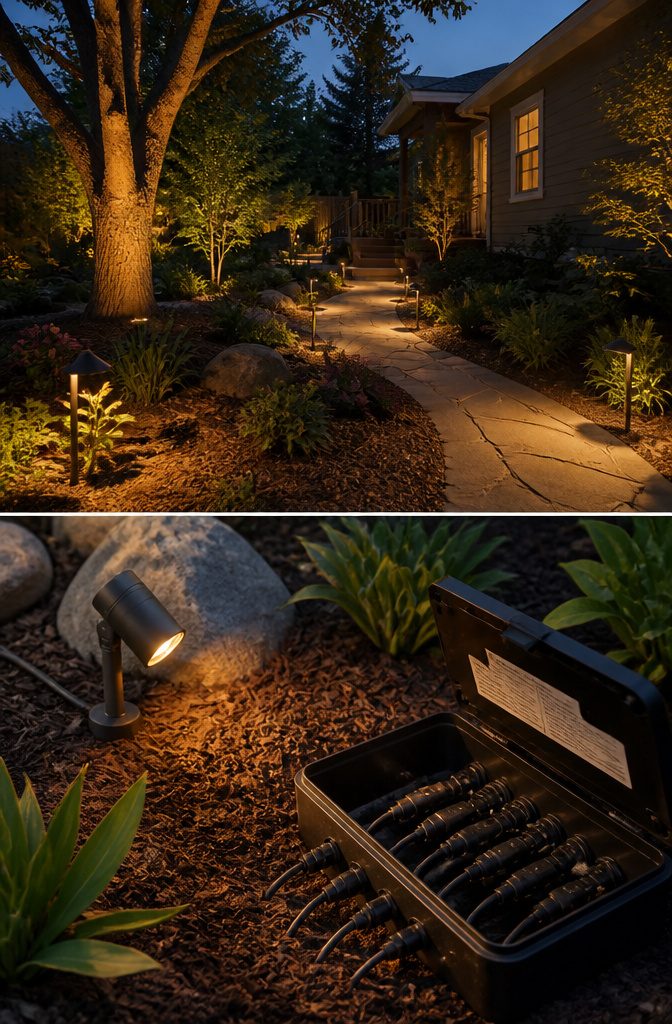

Bury Wire, Aim Lights, and Troubleshoot Dimming Issues

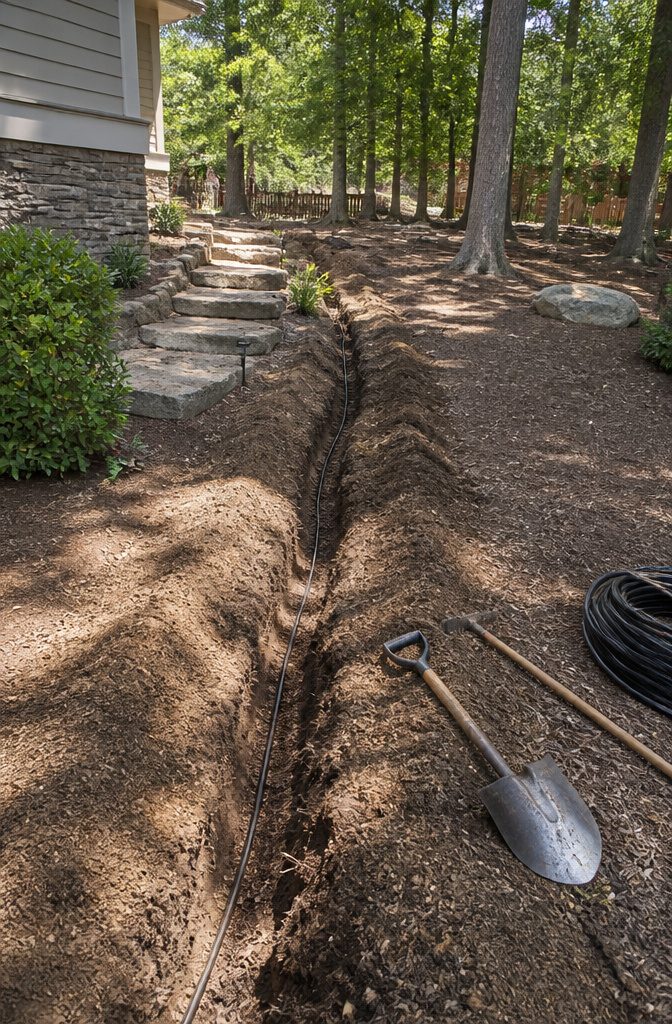

Where do we place all this wire so it stays safe and looks good? I dig a wire trench about 6 inches deep for my low-voltage runs, but I always leave 5 feet unburied at each end. You’ll want that slack later.

And I keep buried conductors 12 inches away from other electrical sources to avoid any interference. For connections, I use clip-on or twist-on connectors, or I’ll grab moisture-protected junction hubs when needed.

After I bury wire, I test the system immediately. I fire up the transformer and walk the whole property, making sure every fixture glows perfectly.

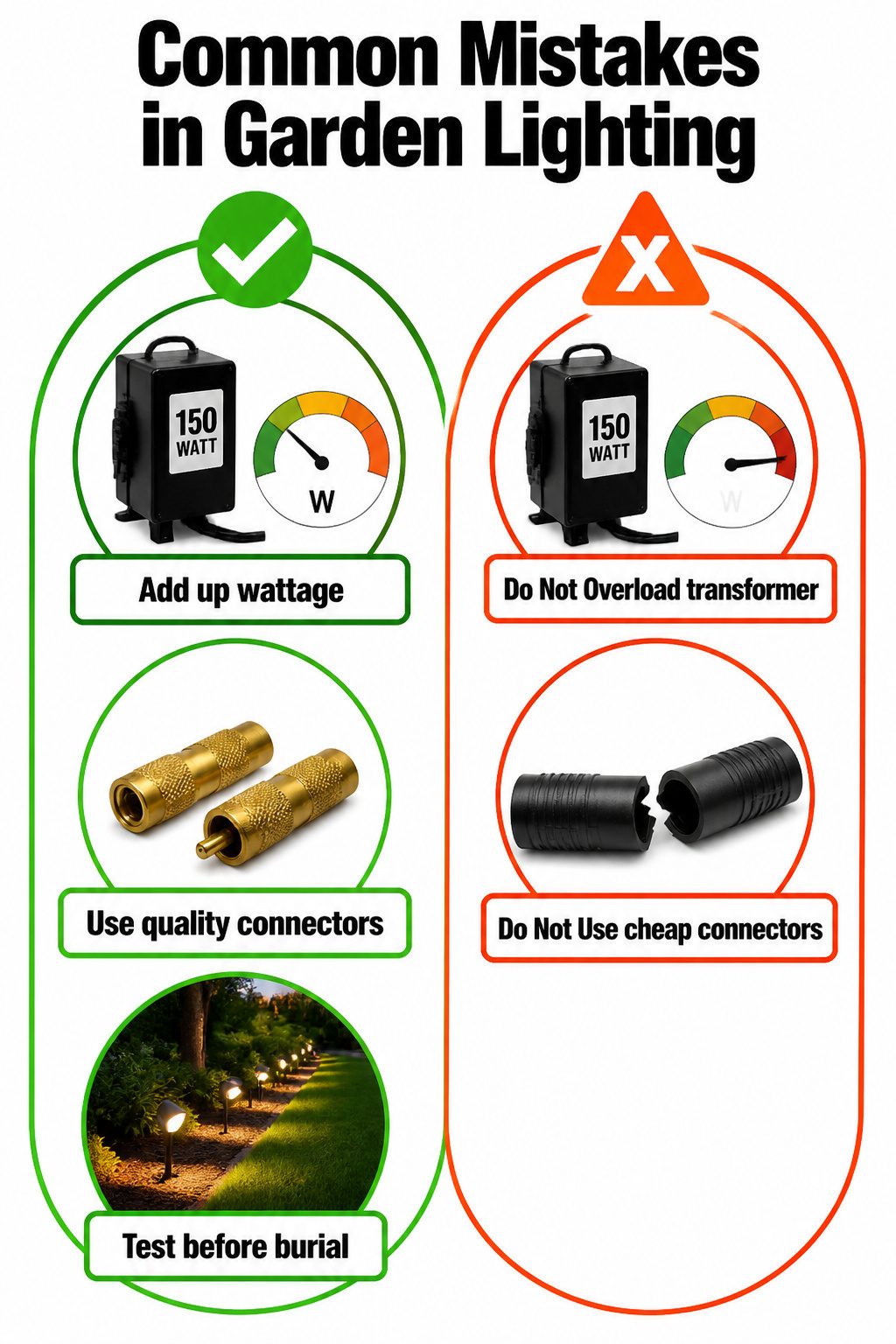

If I spot dimming issues, I check my transformer load first. Then I verify my voltage taps match the run length (12V or 15V) and inspect for loose connections or damaged wiring. This completes the basic troubleshooting process.
